VisionView 280 & 380
Full-width 5mm tempered glass panels in a thermally broken aluminium frame — maximum transparency and a striking architectural presence. Available in framed and frameless configurations.
Full glass
Panel design
Clear / Frosted / Tinted
Glass options
Thermally broken
Aluminium frame
Gallery
VisionView 280 & 380 in situ.
VisionView 280 — Framed
VisionView 380 — Frameless
Design
Framed or frameless.
The VisionView series offers two architectural glazed panel options — 280 with visible aluminium frame sections for a structured appearance, and 380 with a frameless construction for maximum visual clarity.
Framed

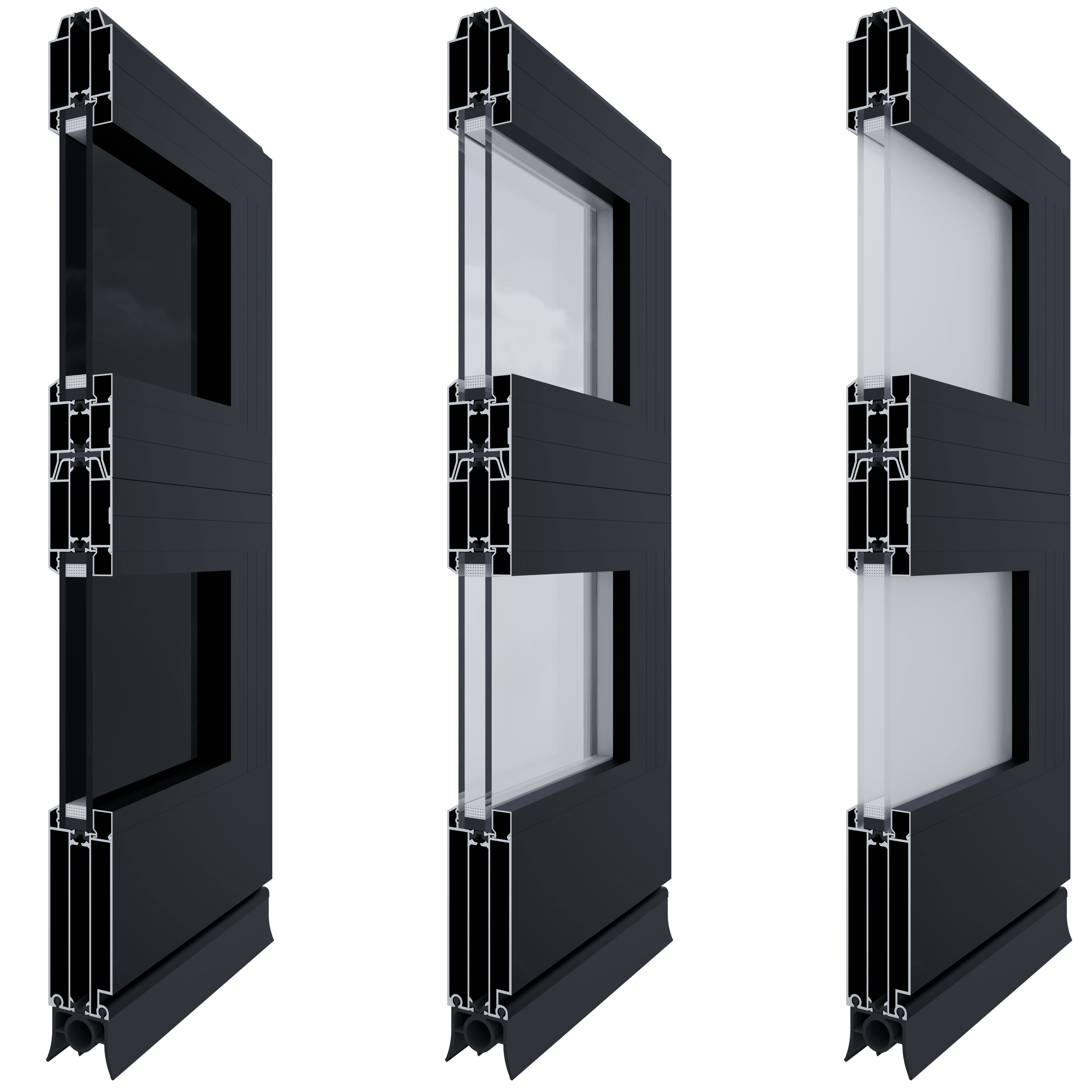

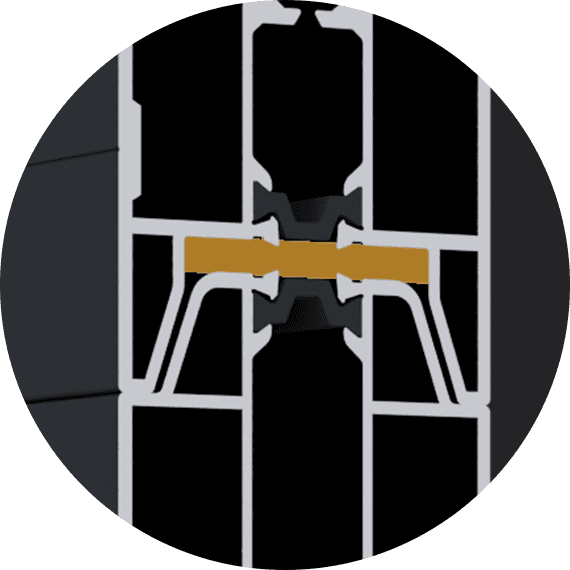

VisionView 280
Visible aluminium frame sections divide each glass panel — a structured, contemporary appearance that reads as deliberately architectural. Suitable for standard ceiling heights.
- Thickness: 50mm overall
- Frame: 1.8mm aluminium profile
Frameless

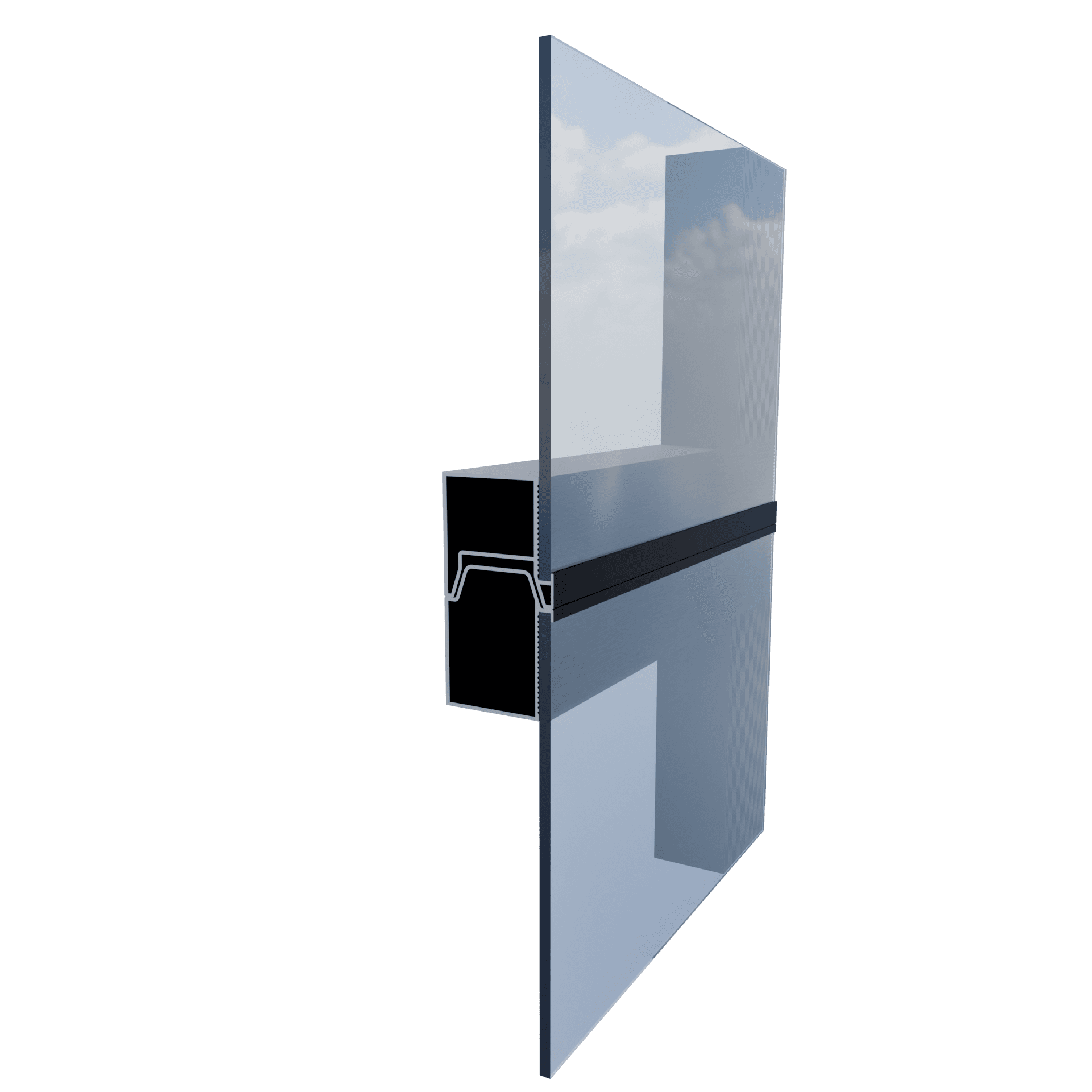

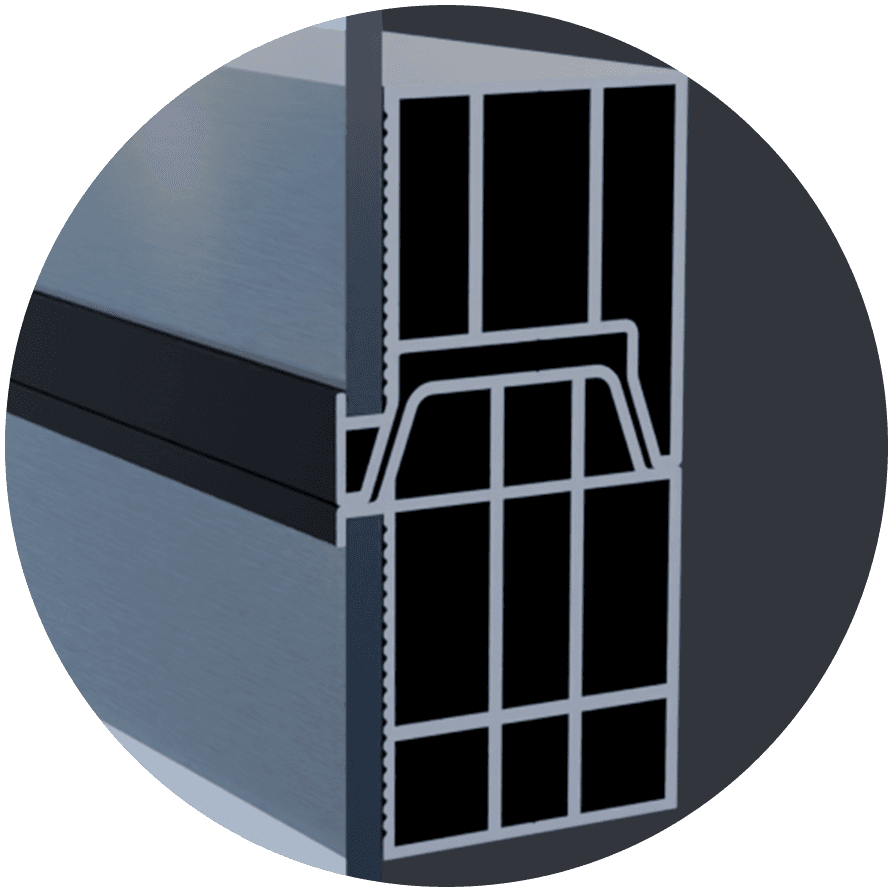

VisionView 380
Large-format glazing with a minimal aluminium edge — the glass appears to float within the opening. Suited to taller openings and larger garages where visual clarity is the priority.
- Thickness: 50mm overall
- Frame: 1.8mm aluminium profile
Optional reinforcement struts are available for doors exceeding 3 metres in width.
Specification
Glass & frame options.
Full-width 5mm single-layer tempered glass spans each panel row — no individual window placement. Three glass finishes are available:
Clear
Maximum visual transparency — the interior reads as fully open from the street. Best for showcase garages and architectural statements.
Frosted
Diffused light with complete privacy — softens the interior view while maintaining a bright, airy appearance from the street.
Black (Tinted)
A near-opaque dark glass that reads as solid from the street — a dramatic, high-contrast choice for bold architectural facades.
Hardware
Hardware configuration.
Three hardware tiers are available — Standard through to Ultra. Every Hommii-supplied door ships with the Ultra tier as standard, included in the base price.
Standard
- Galvanised steel hinges
- Standard nylon rollers
- Basic keyed lock
Upgraded
- Powder-coated hardware
- Ball bearing rollers
- Anti-theft lock
Ultra
- Full premium hardware suite
- Upgraded end hinges
- Spring & cable safety devices
Standard on all Hommii-supplied doors
Premium Hardware — Included with Every Door
Powder-Coated Hardware
Hinges and tracks powder-coated for rust resistance, colour-matched to the door finish.
Ball Bearing Rollers
High-performance nylon ball bearing rollers for smooth, whisper-quiet operation.
Upgraded End Hinges
Aluminium housing with PVC inner sleeve minimises metal-on-metal friction and noise.
Electrophoretic Spring
Anti-corrosion coating keeps the torsion spring rust-free and reliable long-term.
Anti-Theft Lock
Locking latch engages the track slot so the door cannot be forced open when the motor is off.
Track Anti-Rust Base
ABS anti-rust base at the track cut-bottom tackles corrosion at the most exposed contact point.
Spring Break Safety
Locks onto the torsion shaft if the spring breaks, preventing the door from crashing down.
Cable Break Safety
Keeps the door secure to the track if a cable snaps, stopping it from falling unexpectedly.
VisionView 280 & 380 is one of seven door series available through Hommii.
Explore all seriesReady to configure your VisionView?
Our Melbourne team will confirm glass type, frame colour, and structural requirements before handling the full installation.
